Description
Stainless round bar with a diameter of 50 mm and a length of 120 cm, produced from steel grade 1.4841 / 314 by cold drawing. Theoretical weight of the section: 18.7 kg.
Heat-resistant steel designed for use at elevated temperatures. The grade is characterized by resistance to oxidation and retention of mechanical properties under thermal conditions where standard stainless steels may prove insufficient.
Cold-drawn bars are produced by drawing steel through a die at ambient temperature. This results in higher dimensional accuracy, a smoother surface finish and improved mechanical properties compared to hot-rolled bars.
Technical data
| Item length | 120 cm |
| Diameter | 50 mm |
| Steel grade | 1.4841 |
| Norm | EN10088-3:2014 |
| 3.1 certificate available | Yes |
| Production method | Cold drawn |
| Diameter tolerance | h9 |
| Cutting tolerance | -0 / +5 mm |
| Weight | 18.74 kg |
| Product code | S-PZ/050.00/1.4841/120CM |
Legal notes
⚠ Notice! Non-prefabricated goods made to the consumer's specification — not subject to the right of withdrawal pursuant to Art. 16(c) of Directive 2011/83/EU on consumer rights.
Sections are cut from stock material with lengths ranging from 5000–7000 mm. Cutting tolerance: -0 / +5 mm. When purchasing multiple units of the same product, you will receive separate sections. Cutting to any custom length is possible upon consultation.

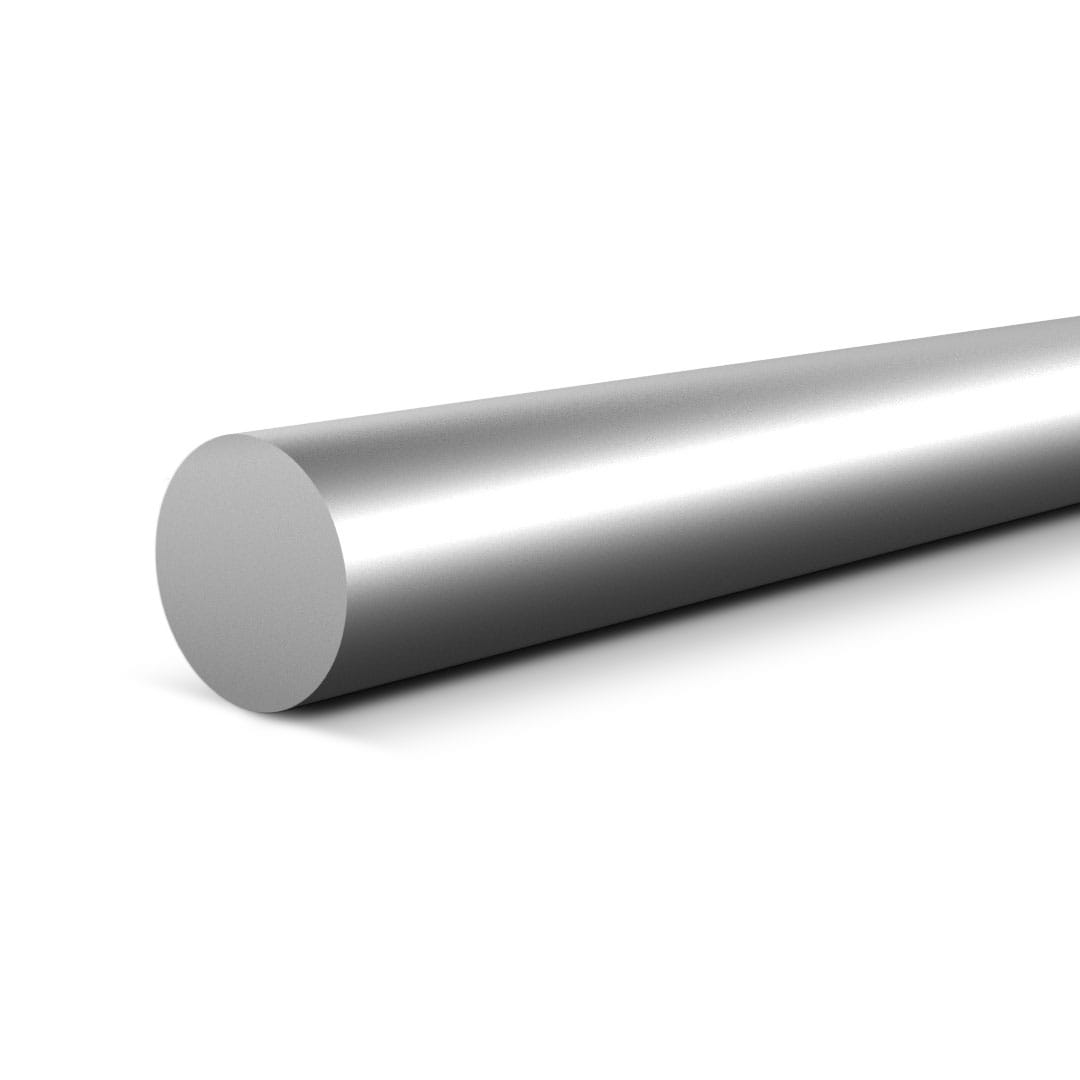

The bar is a steel mill product, manufactured in accordance with EN or ASTM standards, intended for further processing. The image shown in the listing is illustrative and does not represent the actual surface of the product. Due to the characteristics of the band saw used for cutting, a perfectly smooth surface at the cut area cannot be guaranteed.
Any properties not listed in the offer are determined by the standard.
