Loose flanges - overview
Loose flanges (sometimes called lap joint flanges) are flanges that are not permanently welded or fixed to the pipe. Instead, they slide over a matching stub end and can rotate freely around it. This design makes them an economical and practical choice where frequent dismantling, alignment or inspection of pipework is required.
What is a loose flange and how does it work?

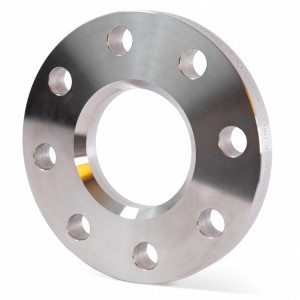

A loose flange is a ring-shaped fitting designed to be used together with a stub end (sometimes called a lap joint stub end). The stub end is welded to the pipe and provides the sealing surface; the loose flange slides over the stub end and is tightened with bolts and a gasket to form the joint. Because the flange is not welded to the pipe, it can be rotated to line up bolt holes easily and removed without cutting or disturbing the pipe weld.
Materials and common steel grades
Products in this category are offered only in stainless, heat-resistant and acid-resistant steels. Typical metallurgical families and common commercial designations include:
- Austenitic stainless steels - widely used for general corrosion resistance and sanitary applications. Examples: 304 (EN 1.4301 / UNS S30400 / AISI 304) and 316 / 316L (EN 1.4401 / 1.4404 / UNS S31600 / S31603 / AISI 316). These are often referred to as "stainless" or "acid-resistant" steels in everyday language.
- Duplex stainless steels - higher strength and improved chloride resistance (example: 2205 / EN 1.4462 / UNS S32205), used where increased resistance to pitting and stress corrosion cracking is needed.
- Ferritic stainless steels - used where moderate corrosion resistance and magnetic properties are acceptable (example: 430 / EN 1.4016 / UNS S43000).
- High-temperature (heat-resistant) grades - used where elevated operating temperatures are expected (examples include grades from the 3xx series such as 310/310S).
Note: In technical documents you will see European (EN) and American (UNS / AISI / ASTM) designations; both are used to ensure compatibility with local procurement and engineering standards in the UK and internationally.
Where and how loose flanges are used
Loose flanges are used in systems where ease of assembly, maintenance or frequent dismantling is required. Common uses include:
- Connections in piping systems with stub ends - sanitary lines in food, beverage and pharmaceutical plants.
- Pipelines in chemical processing where different materials are chosen for the sealing surface (stub end) and the flange to manage corrosion or cost.
- Systems that require frequent inspection, cleaning or replacement of components, for example in breweries or dairy plants.
- Applications where bolt-hole alignment is difficult - the loose flange can be rotated independently to match bolt patterns.
Industries and typical applications
Loose flanges are found across many sectors, from small DIY and garage projects to heavy industry:
- Food and beverage, dairy and brewing - sanitary joints that must be dismantled and cleaned.
- Pharmaceutical - hygienic pipework requiring frequent access and corrosion resistance.
- Chemical and petrochemical - where corrosion-resistant alloys and duplex grades are used.
- Offshore and shipbuilding - systems that need corrosion-resistant joints and occasional disassembly.
- Water treatment and utilities - pipelines where maintenance access is important.
- Building services, HVAC and mechanical engineering - where alignment and serviceability matter.
- Automotive and small-scale fabrication - garage and workshop assemblies where handy, removable joints are useful.
Standards, pressure classes and flange faces
Loose flanges are manufactured to match common piping standards and pressure classes, for example PN ratings under European standards (EN) or ASME/ANSI pressure classes (e.g. 150#) for US-style systems. When selecting a loose flange you should match:
- Nominal pipe size and pressure rating (PN or ANSI/ASME class).
- Flange face type - common faces include raised face (RF) and flat face (FF). The face must match the stub end and the chosen gasket.
- Bolt pattern and material compatibility (bolt grade and corrosion resistance).
Selecting the correct loose flange - practical tips
To choose the right loose flange, consider these points:
- Material selection: pick a grade suited to the fluid, temperature and environment. For general corrosion resistance use 304; for chlorides or harsher chemicals choose 316/316L or duplex; for high temperatures consider heat-resistant grades.
- Compatibility: ensure flange and stub end match in size and pressure class and that gaskets and bolts are compatible with both materials.
- Installation: clean contact faces, use the correct gasket type for the media, and tighten bolts in a cross pattern to the recommended torque to ensure even sealing.
- Maintenance: loose flanges make periodic inspection and replacement easier - replace gaskets when damaged and check bolts for corrosion or loss of tension.
Benefits and limitations
Benefits:
- Easy alignment of bolt holes due to the flange being able to rotate.
- Quick disassembly without cutting or disturbing welded joints.
- Cost-effective when many joints are needed but only the stub end needs to be corrosion-resistant.
- Reusable flange components - useful for temporary or frequently serviced systems.
Limitations:
- Not suitable where very high moment loads or extreme pressures require a welded neck flange for strength; check engineering specifications.
- Because the sealing surface is on the stub end, the stub end material must be selected carefully for corrosion and wear resistance.
Summary
Loose flanges are a practical, serviceable solution for many stainless, acid-resistant and heat-resistant steel piping systems. They are especially valuable where regular access, inspection or reconfiguration is required. When specifying loose flanges, match material grades (EN/UNS/AISI), pressure ratings (PN or ASME), flange face type and bolt specification to the application and industry standard to ensure safe, long-lasting connections.
