Description
Stainless round bar with a diameter of 40 mm and a length of 180 cm, produced from steel grade 1.4462 / UNS S31803 by cold drawing. Theoretical weight of the section: 18 kg.
Grade 1.4462 / S31803 is a duplex stainless steel combining high mechanical strength with very good corrosion resistance. Compared to standard austenitic steels, this grade offers higher strength and better resistance to stress corrosion cracking. The material is used in demanding industrial applications, including the chemical, energy, marine and offshore industries, as well as in installations working in more challenging environmental conditions.
Cold-drawn bars are produced by drawing steel through a die at ambient temperature. This results in higher dimensional accuracy, a smoother surface finish and improved mechanical properties compared to hot-rolled bars.
Technical data
| Item length | 180 cm |
| Diameter | 40 mm |
| Steel grade | 1.4462 |
| Norm | EN10088-3:2014 |
| 3.1 certificate available | Yes |
| Production method | Cold drawn |
| Diameter tolerance | h9 |
| Cutting tolerance | -0 / +5 mm |
| Weight | 18 kg |
| Product code | S-PZ/040.00/1.4462/UNS31803/180CM |
Legal notes
⚠ Notice! Non-prefabricated goods made to the consumer's specification — not subject to the right of withdrawal pursuant to Art. 16(c) of Directive 2011/83/EU on consumer rights.
Sections are cut from stock material with lengths ranging from 5000–7000 mm. Cutting tolerance: -0 / +5 mm. When purchasing multiple units of the same product, you will receive separate sections. Cutting to any custom length is possible upon consultation.

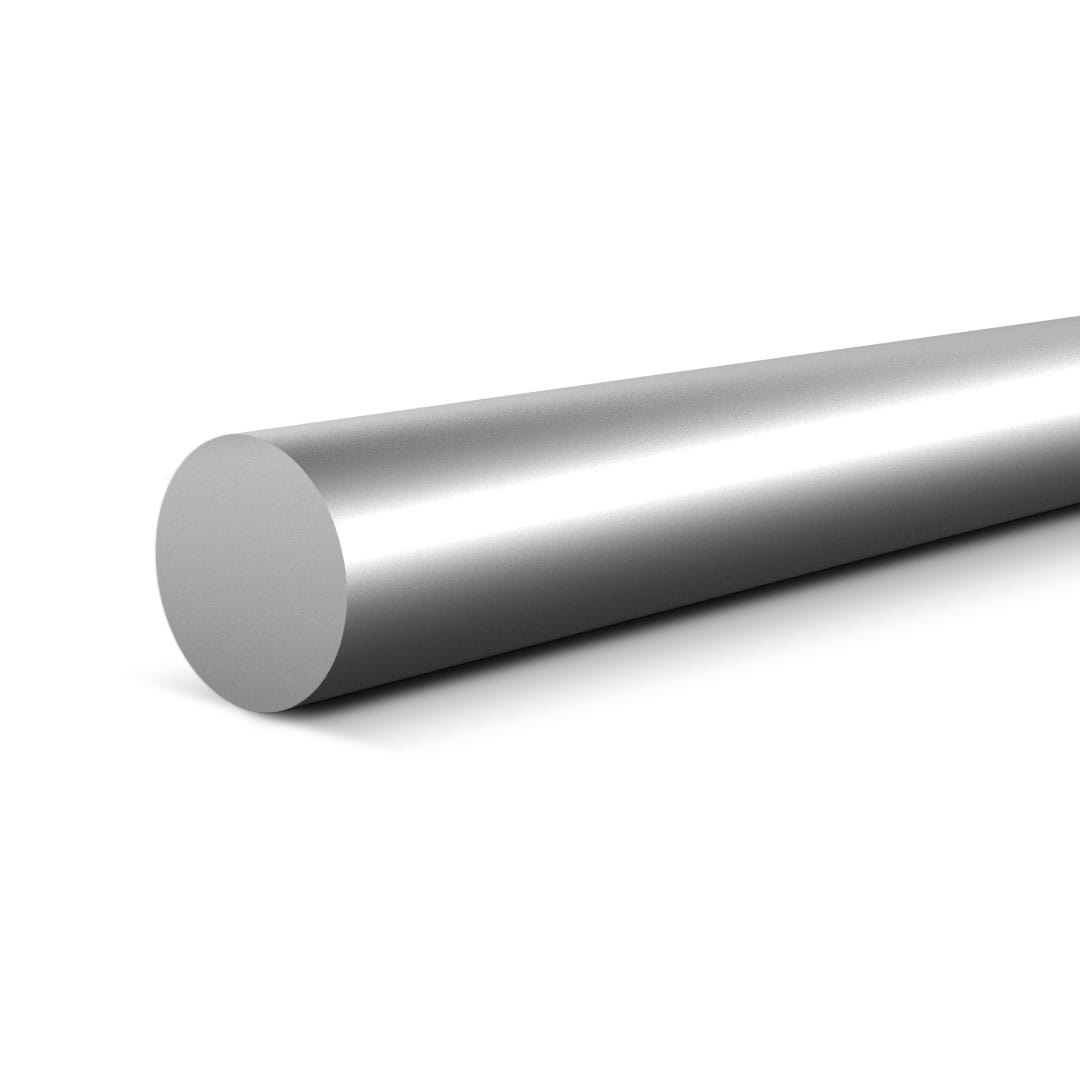

The bar is a steel mill product, manufactured in accordance with EN or ASTM standards, intended for further processing. The image shown in the listing is illustrative and does not represent the actual surface of the product. Due to the characteristics of the band saw used for cutting, a perfectly smooth surface at the cut area cannot be guaranteed.
Any properties not listed in the offer are determined by the standard.
