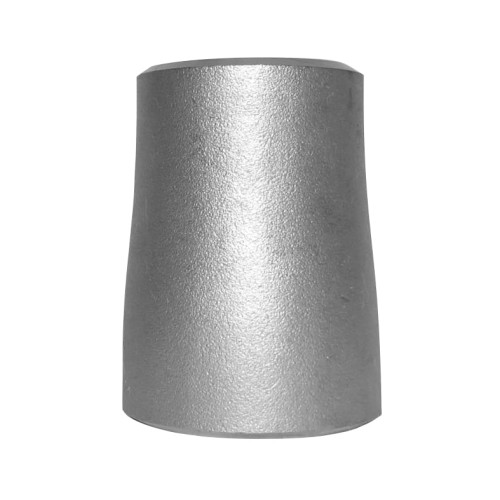

Stainless steel seamless concentric reducer DN100 108 x 5 mm / DN80 88,9 x 4,5 mm in grade 1.4541 / 321

Availability: sold out
Price: €36.58 - (€29.74 net) 36.58
quantity pcs
add to wish list

Description

Stainless steel seamless concentric reducer DN100 108 x 5 mm / DN80 88,9 x 4,5 mm in grade 1.4541 / 321

These metallurgical products are used to change the diameter of the pipeline. Their use does not disturb the flow of liquids or other substances. Another name for this type of stainless reduction is symmetrical reducers. The shape of the wall of the stainless steel concentric reductions has the shape of a straight cone, in contrast to the eccentric reductions, the wall of which has the form of a spherical cone. Stainless steel concentric reducers are chosen by installers because of their very good fluid kinetics.

Specifications:

  • Size 1: 108 x 5 mm (Outside diameter x Wall thickness)
  • Size 2: 88.9 x 4.5 mm
  • Steel grade: 1.4541 / 321
  • Weight: 1.11 kg
  • Norm: DIN2616-2/ EN 10253-4
  • Product code: S-RDK/108.00X05.00/088.90X04.50/1.4541
At the customer's request, we send a 3.1 certificate.


In the assortment of the Stainless Europe store you will find materials in many types of steel. Our offer includes over 20 types of steel: stainless, acid-resistant, heat-resistant (up to 1150 * C), duplex, super duplex and others.
We invite you to familiarize yourself with the offer!

Technical data

Outside diameter (OD) DN100 / 108.00 mm
Wall thickness (WT) 5.00 mm
Outside diameter 2 DN80 / 88.90 mm
Wall thickness 2 4.50 mm
Steel grade 1.4541
Product code: S-RDK/108.00X05.00/088.90X04.50/1.4541
