Description

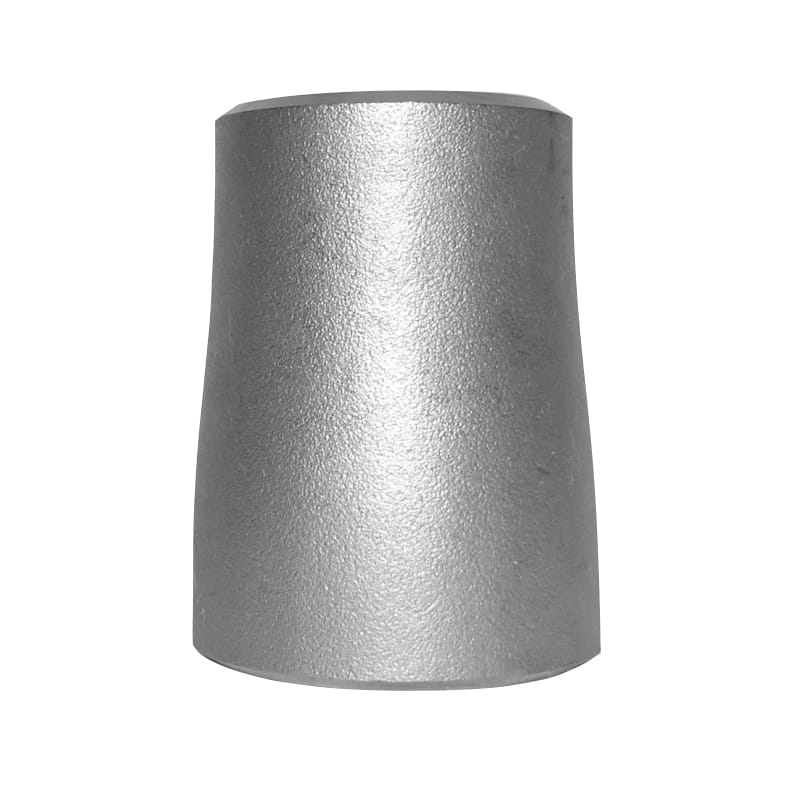

Stainless steel seamless concentric reducer (symmetrical taper), larger side 168.3 × 7.1 mm, smaller side 114.3 × 6.3 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 4.1 kg. A concentric reducer has the shape of a straight cone with an axis symmetrical to both ends — it changes the pipeline diameter without disturbing the flow kinetics of the medium. Used in vertical sections of water, drainage, transfer, chemical, food-grade and sanitary pipework, wherever there is no risk of air pockets or stagnant zones. The seamless construction delivers high pressure resistance and excellent corrosion resistance.
Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
Technical data
| Outside diameter (OD) | DN150 / 168.30 mm |
| Wall thickness (WT) | 7.10 mm |
| Outside diameter 2 | DN100 / 114.30 mm |
| Wall thickness 2 | 6.30 mm |
| Steel grade | 1.4571 |
| 3.1 certificate available | Yes |
| Weight | 4.09 kg |
| Product code | S-RDK/168.30X07.10/114.30X06.30/1.4571 |
