Product code: S-RDK/060.30X05.60/048.30X04.00/1.4571

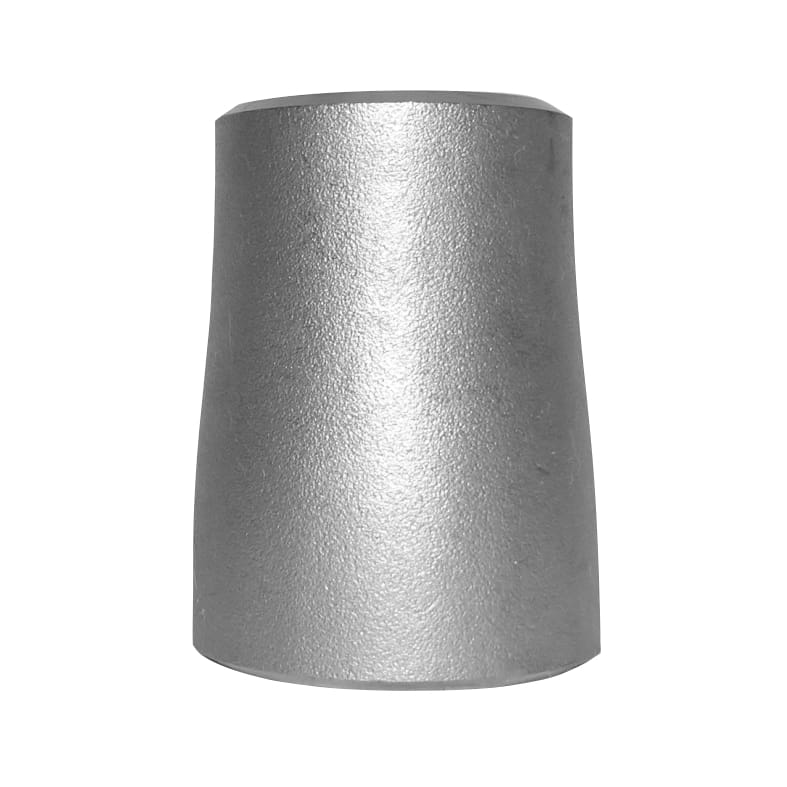

Stainless steel seamless concentric reducer DN40 60.3 x 5.6 mm / DN40 48.3 x 4 mm 1.4571 / 316Ti
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Outside diameter (OD) DN50 / 60.30 mm
- Wall thickness (WT) 5.60 mm
- Outside diameter 2 DN40 / 48.30 mm
- Wall thickness 2 4.00 mm
- Steel grade 1.4571
- 3.1 certificate available yes
Description
Stainless steel seamless concentric reducer (symmetrical taper), larger side 60.3 × 5.6 mm, smaller side 48.3 × 4 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 0.5 kg. A concentric reducer has the shape of a straight cone with an axis symmetrical to both ends — it changes the pipeline diameter without disturbing the flow kinetics of the medium. Used in vertical sections of water, drainage, transfer, chemical, food-grade and sanitary pipework, wherever there is no risk of air pockets or stagnant zones. The seamless construction delivers high pressure resistance and excellent corrosion resistance.
Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
