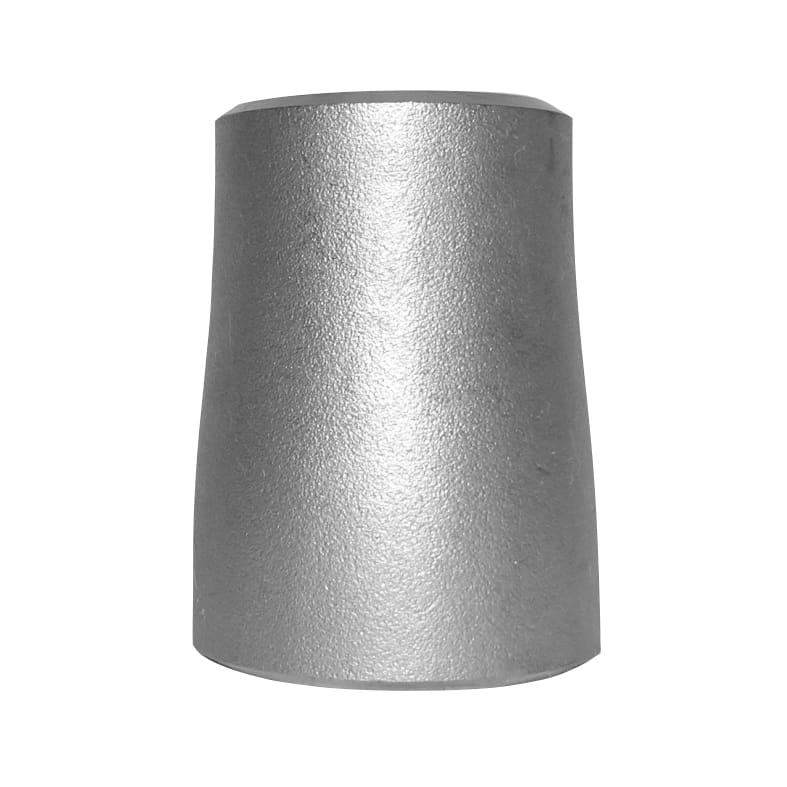

Stainless steel seamless concentric reducer DN40 88.9 x 4.5 mm / DN40 48.3 x 3.6 mm 1.4571 / 316Ti

with VAT without VAT
Price €33.40
Availability:
product-availability-module sold out
Ask about the product

Complete your order:

Certificate 3.1 - select only one for the whole basket €5.00 EUR

Specifications

  • Outside diameter (OD) DN80 / 88.90 mm
  • Wall thickness (WT) 4.50 mm
  • Outside diameter 2 DN40 / 48.30 mm
  • Wall thickness 2 3.60 mm
  • Steel grade 1.4571
  • 3.1 certificate available yes

Description

Stainless steel seamless concentric reducer (symmetrical taper), larger side 88.9 × 4.5 mm, smaller side 48.3 × 3.6 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 0.9 kg. A concentric reducer has the shape of a straight cone with an axis symmetrical to both ends — it changes the pipeline diameter without disturbing the flow kinetics of the medium. Used in vertical sections of water, drainage, transfer, chemical, food-grade and sanitary pipework, wherever there is no risk of air pockets or stagnant zones. The seamless construction delivers high pressure resistance and excellent corrosion resistance.

Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
