Description

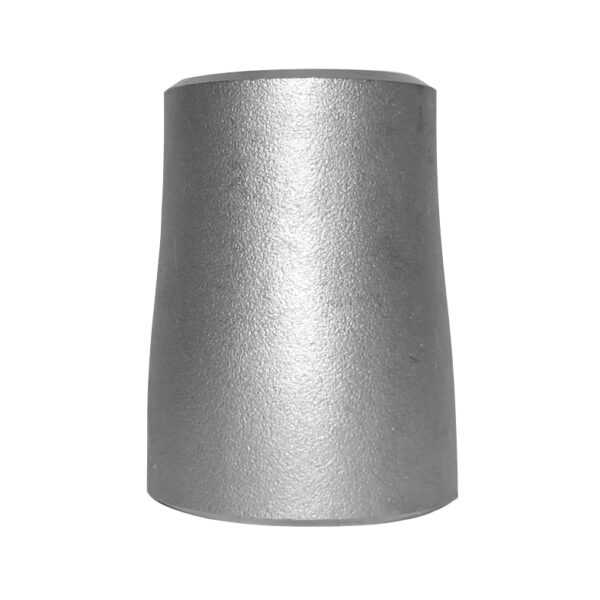

Stainless steel seamless concentric reducer (symmetrical taper), larger side 88.9 × 3.05 mm, smaller side 76.1 × 2.9 mm, steel grade 1.4301 / 304 / 1.4307 / 304L. Theoretical weight per piece: 1.5 kg. A concentric reducer has the shape of a straight cone with an axis symmetrical to both ends — it changes the pipeline diameter without disturbing the flow kinetics of the medium. Used in vertical sections of water, drainage, transfer, chemical, food-grade and sanitary pipework, wherever there is no risk of air pockets or stagnant zones. The seamless construction delivers high pressure resistance and excellent corrosion resistance.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
Technical data
| Outside diameter (OD) | DN80 / 88.90 mm |
| Wall thickness (WT) | 3.05 mm |
| Outside diameter 2 | DN65 / 76.10 mm |
| Wall thickness 2 | 2.90 mm |
| Steel grade | 1.4307 |
| 3.1 certificate available | Yes |
| Weight | 1.5 kg |
| Product code | S-RDK-MZ2/088.90X03.05/076.10X02.90/1.4307 |
