Description

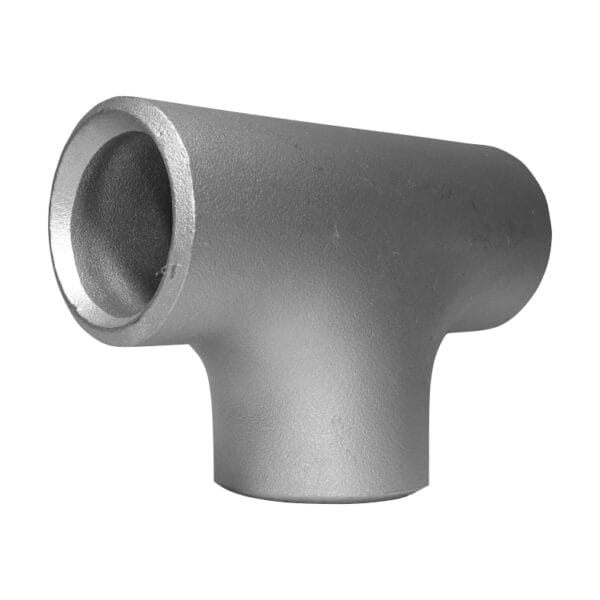

Stainless steel seamless equal tee, outside diameter 219.1 mm × wall thickness 8 mm, steel grade 1.4301 / 304 / 1.4307 / 304L. Theoretical weight per piece: 23.1 kg. An equal tee has three outlets of the same internal diameter and is used to branch a pipeline at 90° while keeping the cross-section constant. Used in water, drainage, transfer, chemical, food-grade and sanitary installations wherever a medium has to be supplied or discharged perpendicular to the main pipeline axis. The seamless construction delivers high pressure resistance and excellent corrosion resistance.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
Technical data
| Outside diameter (OD) | DN200 / 219.10 mm |
| Wall thickness (WT) | 8.00 mm |
| Steel grade | 1.4307 |
| 3.1 certificate available | Yes |
| Weight | 23.1 kg |
| Product code | S-TN-MZ2/219.10X08.00/1.4307 |
