Description

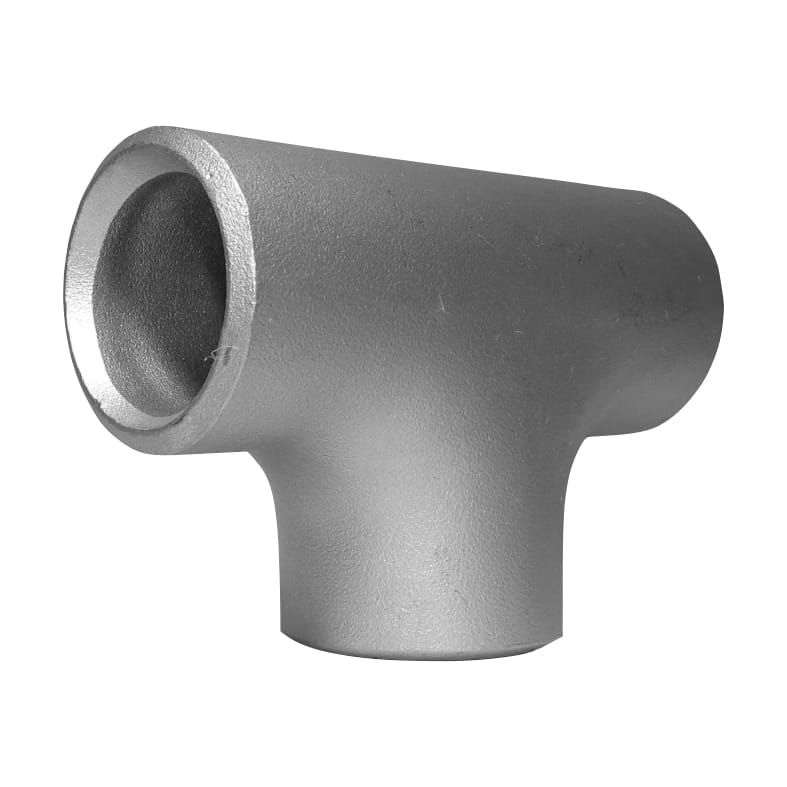

Stainless steel seamless equal tee, outside diameter 42.4 mm × wall thickness 4 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 0.7 kg. An equal tee has three outlets of the same internal diameter and is used to branch a pipeline at 90° while keeping the cross-section constant. Used in water, drainage, transfer, chemical, food-grade and sanitary installations wherever a medium has to be supplied or discharged perpendicular to the main pipeline axis. The seamless construction delivers high pressure resistance and excellent corrosion resistance.
Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
Technical data
| Outside diameter (OD) | DN32 / 42.40 mm |
| Wall thickness (WT) | 4.00 mm |
| Steel grade | 1.4571 |
| 3.1 certificate available | Yes |
| Weight | 0.7 kg |
| Product code | S-TN/042.40X04.00/1.4571 |
