Product code: S-KNL/114.30/1.4307

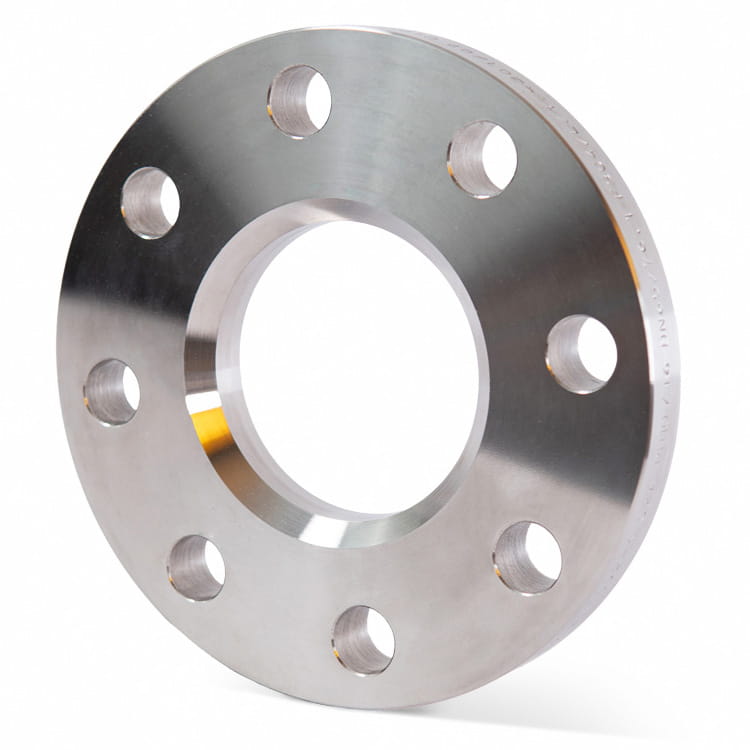

Stainless steel forged loose flange DN100 114.3 mm PN16 1.4301 / 1.4307 / 304 / 304L
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Tube outside diameter DN100 / 114.30 mm
- Number of holes 8
- Nominal pressure PN PN16
- Steel grade 1.4307
- Norm EN1092-1/02A
- 3.1 certificate available yes
Description
Stainless steel flange, pipe outside diameter 114.3 mm, nominal pressure PN16, hole count 8, steel grade 1.4301 / 1.4307 / 304 / 304L. Theoretical weight per piece: 4.2 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The lap-joint (loose) flange slips over a stub end welded to the pipe and rotates freely around the pipeline axis — this simplifies bolt-hole alignment and installation in tight spaces.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
