Description

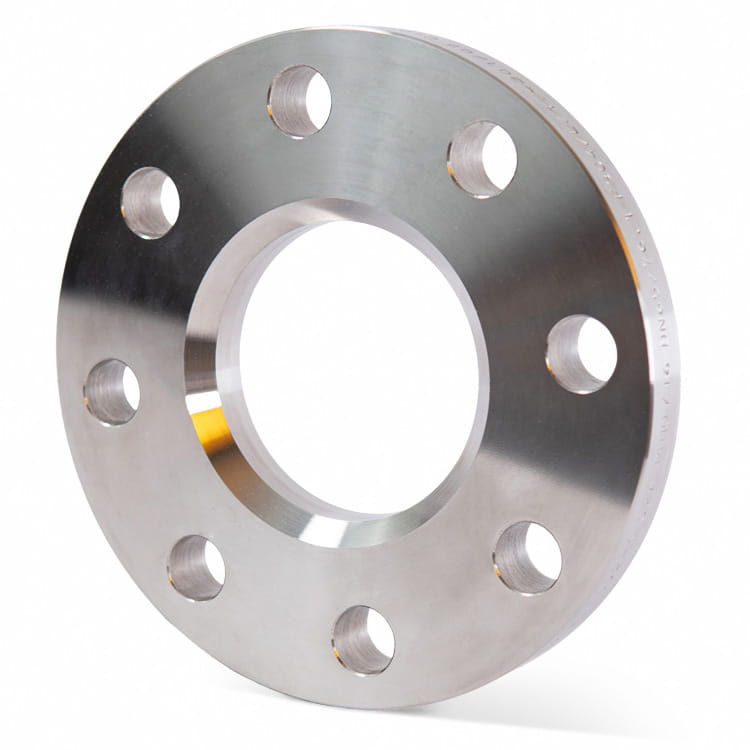

Stainless steel flange, pipe outside diameter 139.7 mm, nominal pressure PN16, hole count 8, steel grade 1.4301 / 1.4307 / 304 / 304L. Theoretical weight per piece: 5.2 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The lap-joint (loose) flange slips over a stub end welded to the pipe and rotates freely around the pipeline axis — this simplifies bolt-hole alignment and installation in tight spaces.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
Technical data
| Tube outside diameter | DN125 / 139.70 mm |
| Number of holes | 8 |
| Nominal pressure PN | PN16 |
| Steel grade | 1.4307 |
| Norm | EN1092-1/02A |
| 3.1 certificate available | Yes |
| Weight | 5.2 kg |
| Product code | S-KNL/139.70/1.4307 |
