Product code: S-KNZ/021.30/1.4404

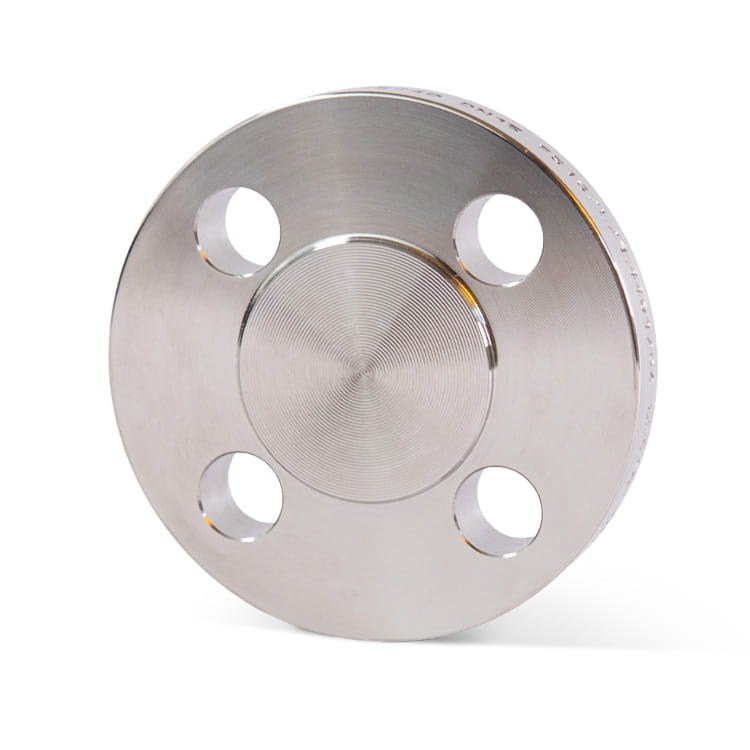

Stainless steel forged blind flange DN15 21.3 mm PN40 1.4401 / 1.4404 / 316 / 316L
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Tube outside diameter DN15 / 21.30 mm
- Number of holes 4
- Nominal pressure PN PN40
- Steel grade 1.4404
- Norm EN1092-1/05B
- 3.1 certificate available yes
Description
Stainless steel flange, pipe outside diameter 21.3 mm, nominal pressure PN40, hole count 4, steel grade 1.4401 / 1.4404 / 316 / 316L. Theoretical weight per piece: 0.8 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The blind flange terminates a pipeline run and provides a removable closure — used for inspection access, pressure testing or as a permanent seal on standby branches.
Grade 1.4404 / 316L is an austenitic stainless steel with enhanced corrosion resistance, particularly in more chemically aggressive environments. Thanks to its molybdenum content, this grade offers better corrosion resistance than steel 1.4301 / 304. The material is used in the chemical, food, marine, pharmaceutical industries and in installations and equipment exposed to moisture, chlorides and other corrosive agents.
