Product code: S-KNP/159.00/1.4307B

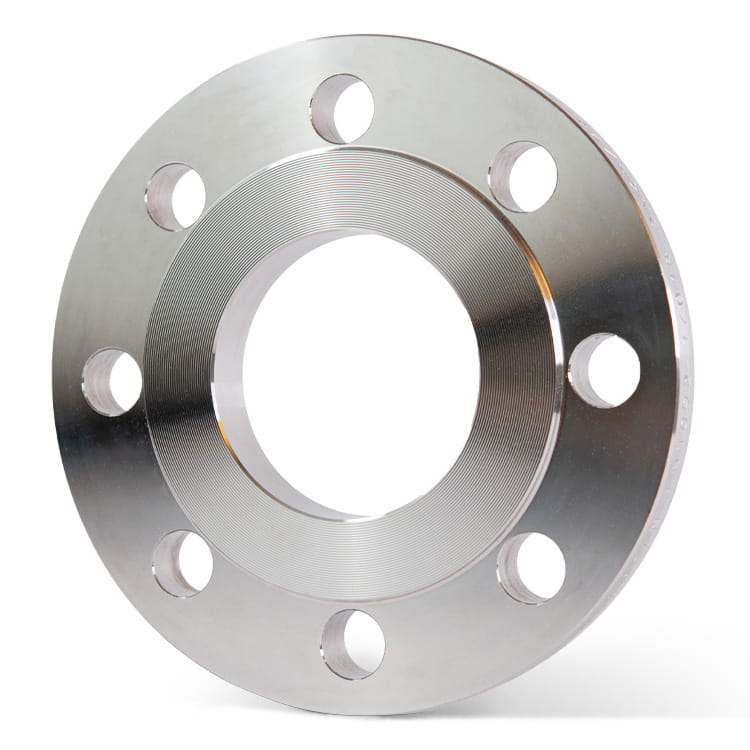

Stainless steel forged flat flange DN150 159 mm PN16 1.4301 / 1.4307 / 304 / 304L
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Tube outside diameter DN150 / 159.00 mm
- Number of holes 8
- Nominal pressure PN PN16
- Steel grade 1.4307
- Norm EN1092-1/01B
- 3.1 certificate available yes
Description
Stainless steel flange, pipe outside diameter 159 mm, nominal pressure PN16, hole count 8, steel grade 1.4301 / 1.4307 / 304 / 304L. Theoretical weight per piece: 7.2 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The slip-on flange is slipped over the pipe and welded with two fillet welds — one of the simplest and most economical flange options to install.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
