Description

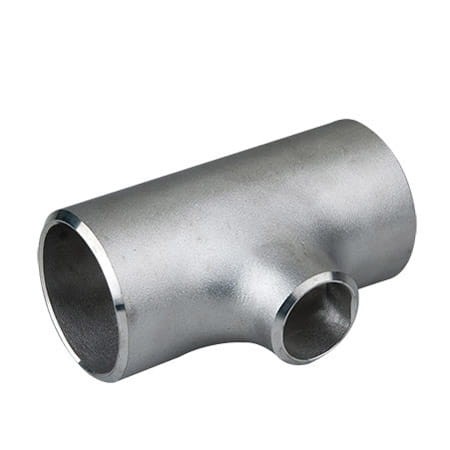

Stainless steel seamless reducing tee, larger side 114.3 × 3.6 mm, smaller side 60.3 × 2.9 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 2.6 kg. A reducing tee has three outlets where one of the branches has a smaller diameter than the main run. Used in water, drainage, chemical, food-grade and industrial installations to branch a pipeline while reducing the cross-section of one outlet — typically for auxiliary connections, sensors, vents or take-offs with lower flow demand. The seamless construction delivers high pressure resistance and excellent corrosion resistance.
Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
Technical data
| Outside diameter (OD) | DN100 / 114.30 mm |
| Wall thickness (WT) | 3.60 mm |
| Outside diameter 2 | DN50 / 60.30 mm |
| Wall thickness 2 | 2.90 mm |
| Steel grade | 1.4571 |
| 3.1 certificate available | Yes |
| Weight | 2.6 kg |
| Product code | S-TNR/114.30X03.60/060.30X02.90/1.4571 |
