Description

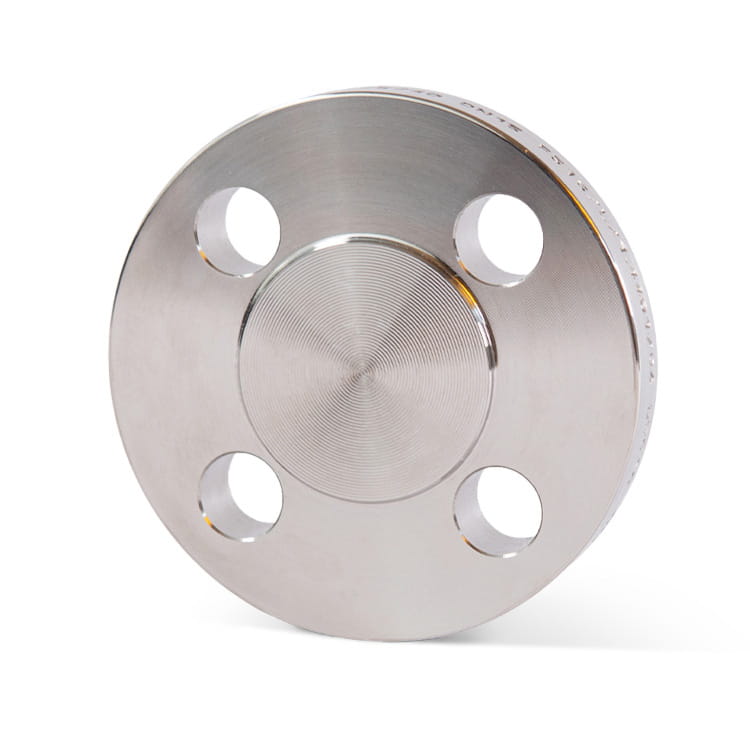

Stainless steel flange, pipe outside diameter 33.7 mm, nominal pressure PN40, hole count 4, steel grade 1.4401 / 1.4404 / 316 / 316L. Theoretical weight per piece: 1.4 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The blind flange terminates a pipeline run and provides a removable closure — used for inspection access, pressure testing or as a permanent seal on standby branches.
Grade 1.4404 / 316L is an austenitic stainless steel with enhanced corrosion resistance, particularly in more chemically aggressive environments. Thanks to its molybdenum content, this grade offers better corrosion resistance than steel 1.4301 / 304. The material is used in the chemical, food, marine, pharmaceutical industries and in installations and equipment exposed to moisture, chlorides and other corrosive agents.
Technical data
| Tube outside diameter | DN25 / 33.70 mm |
| Number of holes | 4 |
| Nominal pressure PN | PN40 |
| Steel grade | 1.4404 |
| Norm | EN1092-1/05B |
| 3.1 certificate available | Yes |
| Weight | 1.38 kg |
| Product code | S-KNZ/033.70/1.4404 |
