Product code: S-KNP/273.00/1.4541B

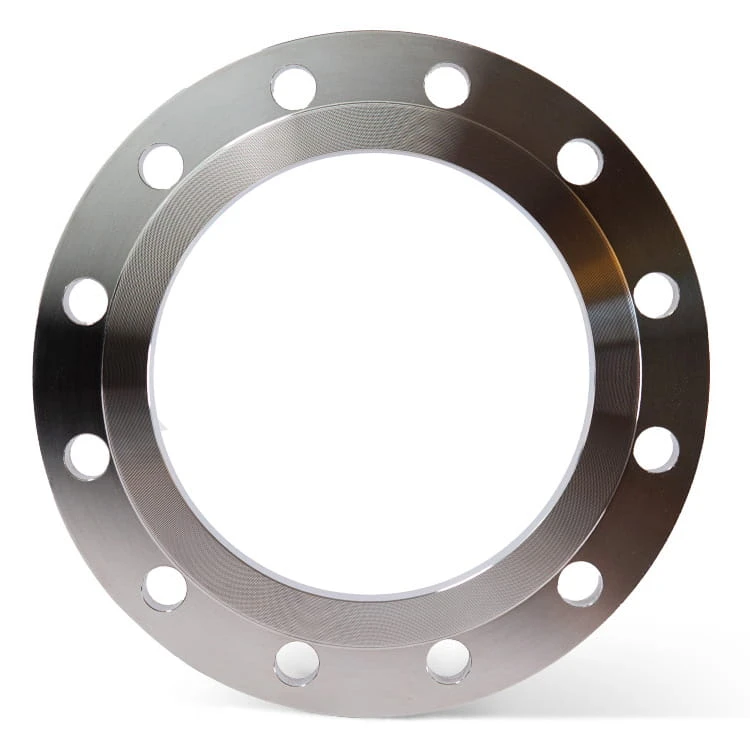

Stainless steel forged flat flange DN250 273 mm PN16 1.4541 / 321
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Tube outside diameter DN250 / 273.00 mm
- Number of holes 12
- Nominal pressure PN PN16
- Steel grade 1.4541
- Norm EN1092-1/01B
- 3.1 certificate available yes
Description
Stainless steel flange, pipe outside diameter 273 mm, nominal pressure PN16, hole count 12, steel grade 1.4541 / 321. Theoretical weight per piece: 15.6 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The slip-on flange is slipped over the pipe and welded with two fillet welds — one of the simplest and most economical flange options to install.
Grade 1.4541 / 321 is a titanium-stabilised austenitic stainless steel. This grade is characterised by good corrosion resistance and is often chosen for applications where resistance to elevated temperatures and good structural stability of the material are important. Steel 1.4541 is used in the mechanical engineering, energy, chemical industries and in components of installations working under more demanding thermal conditions.
