Product code: S-KNSZ/08.00/SCH40S/CLASS150/1.4307

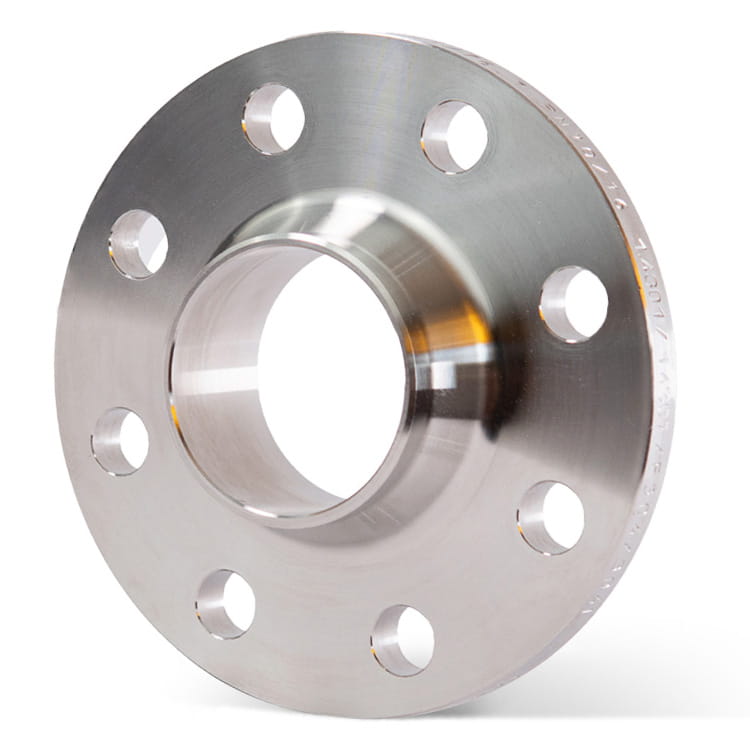

Stainless steel forged weld neck flange 8″ / 219,1 mm CLASS150 1.4301 / 1.4307 / 304 / 304L
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Tube outside diameter 8" / 219,08 mm
- Number of holes 8
- Nominal pressure PN CLASS150
- Steel grade 1.4307
- Norm ASME / ANSI
- 3.1 certificate available yes
Description
Stainless steel flange, pipe outside diameter 8″ / 219,1 mm, nominal pressure CLASS150, hole count 8, steel grade 1.4301 / 1.4307 / 304 / 304L. Theoretical weight per piece: 17.7 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The weld neck flange has an extended hub butt-welded to the pipe, providing a smooth diameter transition and the highest pressure rating — used for demanding service and critical installations.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
