Product code: S-KNSZ/026.90/1.4571

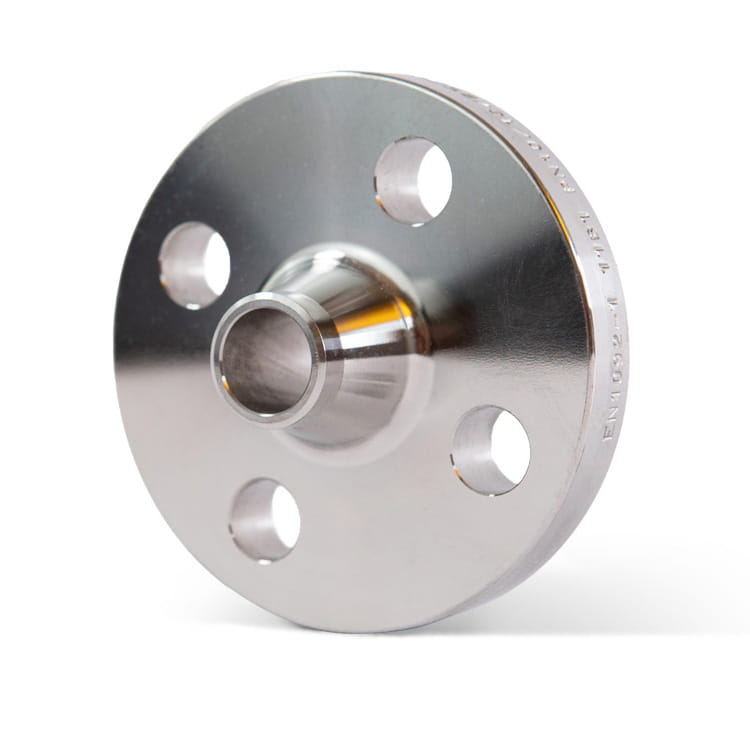

Stainless steel forged weld neck flange DN20 26.9 mm PN40 1.4571 / 316Ti
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Tube outside diameter DN20 / 26.90 mm
- Number of holes 4
- Nominal pressure PN PN40
- Steel grade 1.4571
- Norm EN1092-1/11B1
- 3.1 certificate available yes
Description
Stainless steel flange, pipe outside diameter 26.9 mm, nominal pressure PN40, hole count 4, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 1 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The weld neck flange has an extended hub butt-welded to the pipe, providing a smooth diameter transition and the highest pressure rating — used for demanding service and critical installations.
Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
