Description

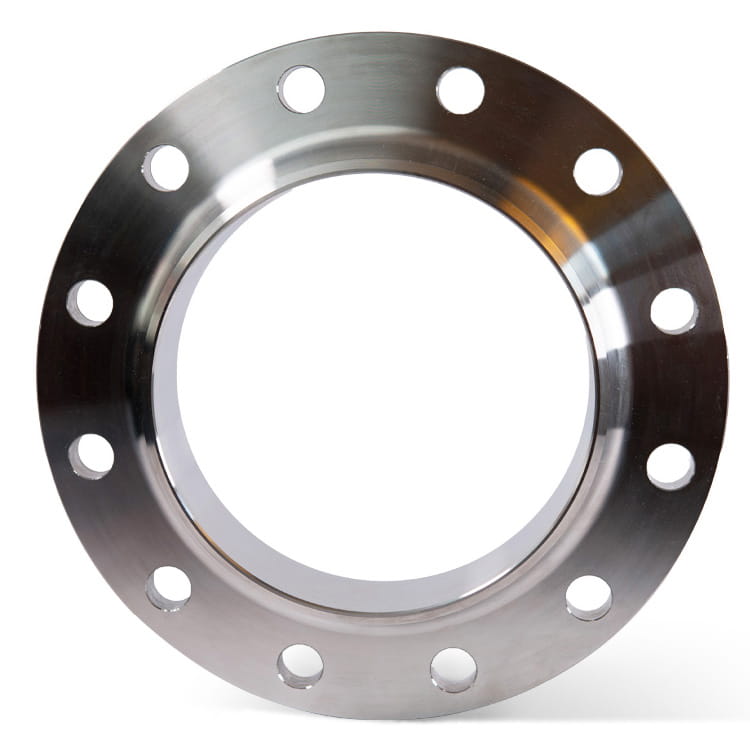

Stainless steel flange, pipe outside diameter 323.9 mm, nominal pressure PN10, hole count 12, steel grade 1.4301 / 1.4307 / 304 / 304L. Theoretical weight per piece: 11 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The weld neck flange has an extended hub butt-welded to the pipe, providing a smooth diameter transition and the highest pressure rating — used for demanding service and critical installations.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
Technical data
| Tube outside diameter | DN300 / 323.90 mm |
| Number of holes | 12 |
| Nominal pressure PN | PN10 |
| Steel grade | 1.4307 |
| Norm | EN1092-1/11B1 |
| 3.1 certificate available | Yes |
| Weight | 11 kg |
| Product code | S-KNSZ/323.90/1.4307 |
