Description

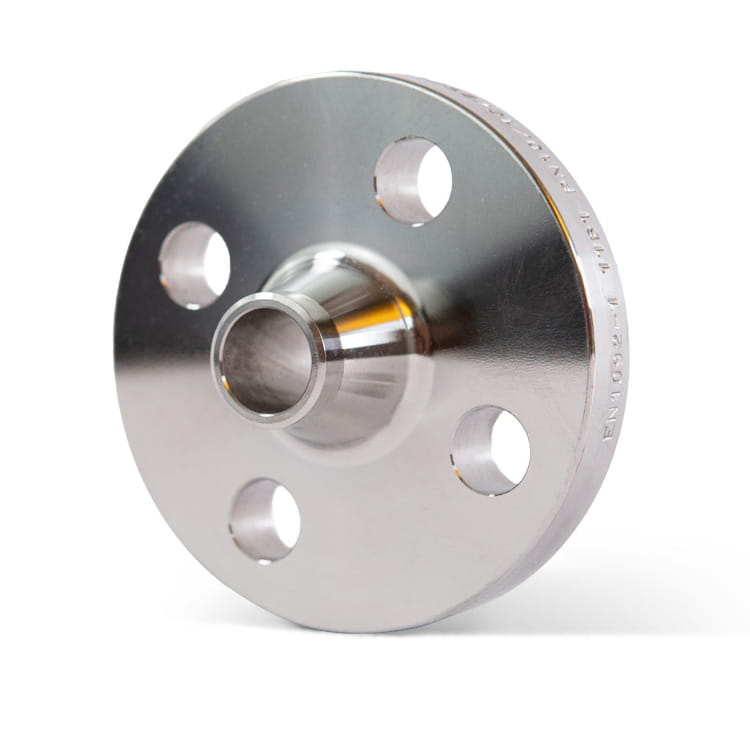

Stainless steel flange, pipe outside diameter 60.3 mm, nominal pressure PN16, hole count 4, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 2.5 kg. Flanges are used wherever a detachable connection of pipeline components is required — with valves, butterfly valves, pumps, filters and other fittings. Compliant with the EN 1092-1 / DIN standard family. The weld neck flange has an extended hub butt-welded to the pipe, providing a smooth diameter transition and the highest pressure rating — used for demanding service and critical installations.
Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
Technical data
| Tube outside diameter | DN50 / 60.30 mm |
| Number of holes | 4 |
| Nominal pressure PN | PN16 |
| Steel grade | 1.4571 |
| Norm | EN1092-1/11B1 |
| 3.1 certificate available | Yes |
| Weight | 2.47 kg |
| Product code | S-KNSZ/060.30/1.4571 |
