Description

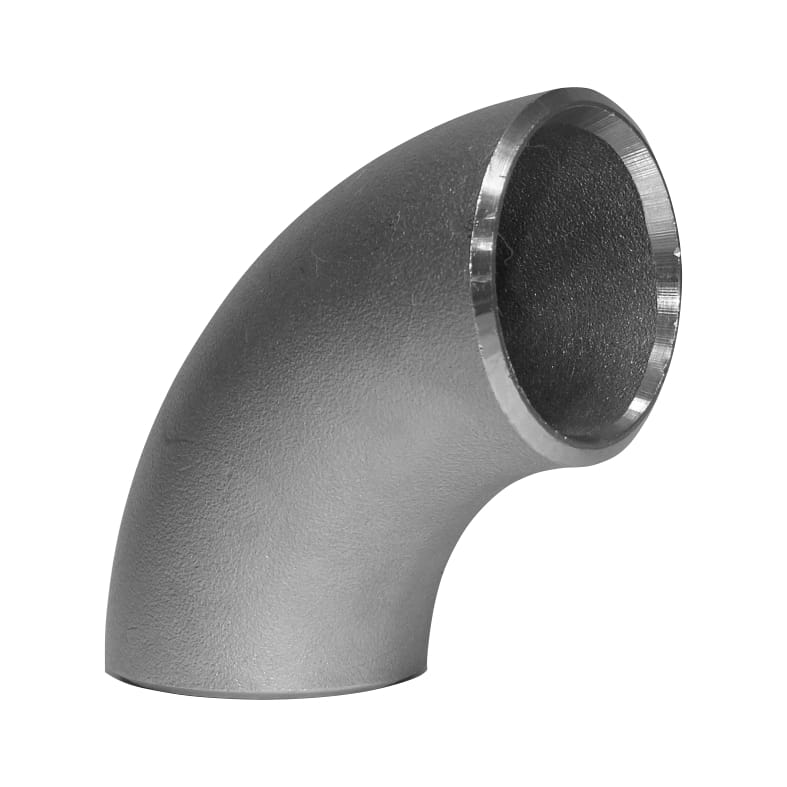

Stainless steel seamless elbow 90° with a 1,5D radius, outside diameter 108 mm × wall thickness 4 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 3 kg. Stainless steel elbows are used wherever a pipeline must change direction — in hydraulics, industrial installations, heat exchangers, and chemical, food-grade and sanitary systems. The seamless construction delivers high pressure resistance and excellent corrosion resistance. Compliant with DIN 2605-1 / EN 10253-4. The 90° version is the most common elbow variant, used for sharp direction changes in compact industrial, sanitary and transfer piping.
Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
Technical data
| Outside diameter (OD) | DN100 / 108.00 mm |
| Wall thickness (WT) | 4.00 mm |
| Steel grade | 1.4571 |
| Radius | 1,5D (Type 3) |
| Angle | 90° |
| 3.1 certificate available | Yes |
| Weight | 3 kg |
| Product code | S-KL90/108.00X04.00/1.4571 |
