Description

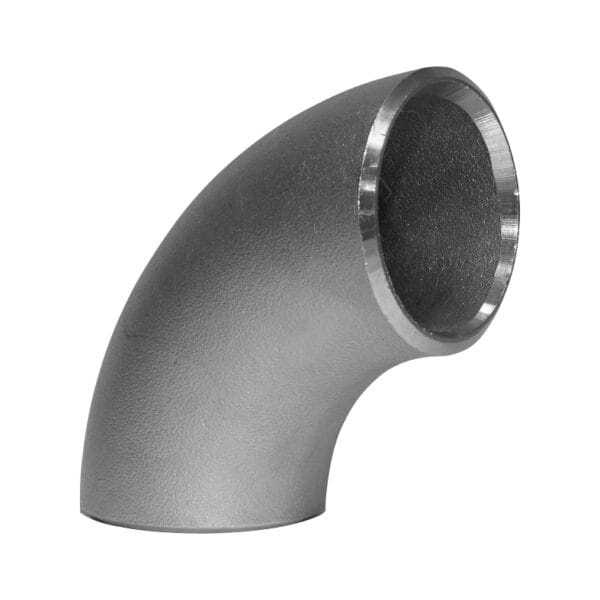

Stainless steel seamless elbow 90° with a 1,5D radius, outside diameter 114.3 mm × wall thickness 6.3 mm, steel grade 1.4301 / 304 / 1.4307 / 304L. Theoretical weight per piece: 4.6 kg. Stainless steel elbows are used wherever a pipeline must change direction — in hydraulics, industrial installations, heat exchangers, and chemical, food-grade and sanitary systems. The seamless construction delivers high pressure resistance and excellent corrosion resistance. Compliant with DIN 2605-1 / EN 10253-4. The 90° version is the most common elbow variant, used for sharp direction changes in compact industrial, sanitary and transfer piping.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
Technical data
| Outside diameter (OD) | DN100 / 114.30 mm |
| Wall thickness (WT) | 6.30 mm |
| Steel grade | 1.4307 |
| Radius | 1,5D (Type 3) |
| Angle | 90° |
| 3.1 certificate available | Yes |
| Weight | 4.62 kg |
| Product code | S-KL90-MZ2/114.30X06.30/1.4307 |
