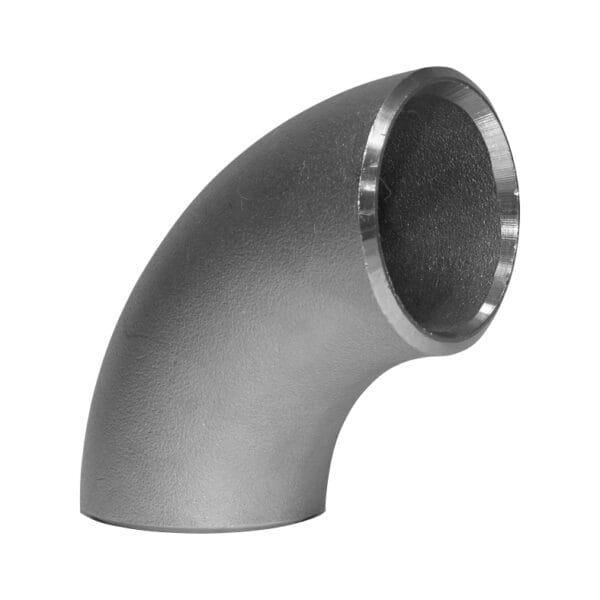

Stainless steel seamless elbow 90° 1,5D DN15 OD 21.3 mm x 2 mm 1.4301 / 1.4307 / 304 / 304L

Stainless steel seamless elbow 90° with a 1,5D radius, outside diameter 21.3 mm × wall thickness 2 mm, steel grade 1.4301 / 1.4307 / 304 / 304L. Theoretical weight per piece: 0.4 kg. Stainless steel elbows are used wherever a pipeline must change direction - in hydraulics, industrial installations, heat exchangers, and chemical, food-grade and sanitary systems. The seamless construction delivers high pressure resistance and excellent corrosion resistance. Compliant with DIN 2605-1 / EN 10253-4. The full list of dimensions and allowable pressures can be found in the dimensions and pressure table for seamless elbows. The 90° version is the most common elbow variant, used for sharp direction changes in compact industrial, sanitary and transfer piping.

Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
