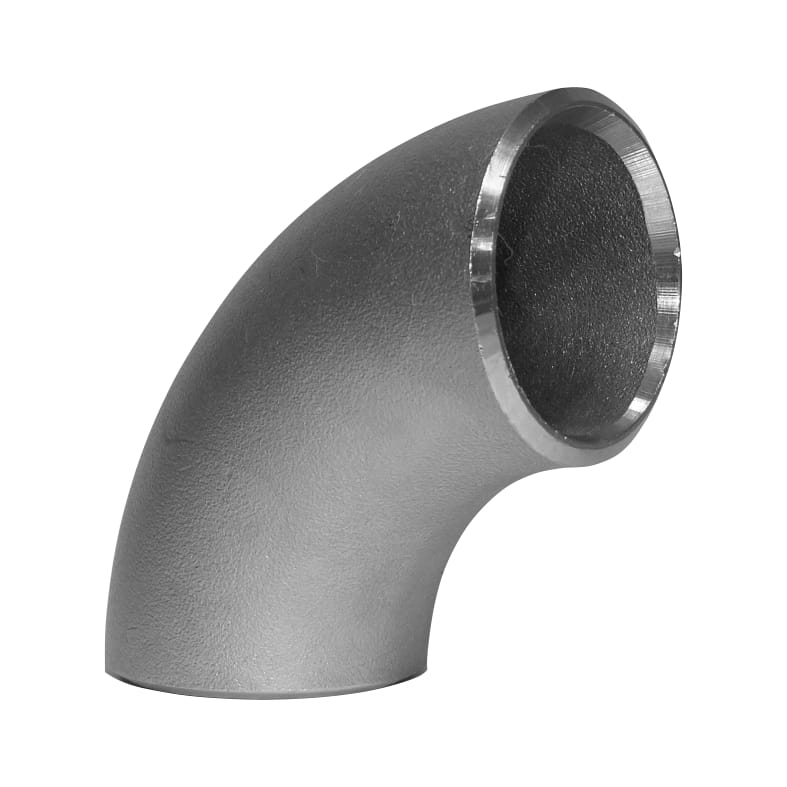

Stainless steel seamless elbow 90° 1,5D DN150 OD 168.3 mm x 6.3 mm 1.4571 / 316Ti

Stainless steel seamless elbow 90° with a 1,5D radius, outside diameter 168.3 mm × wall thickness 6.3 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 10 kg. Stainless steel elbows are used wherever a pipeline must change direction - in hydraulics, industrial installations, heat exchangers, and chemical, food-grade and sanitary systems. The seamless construction delivers high pressure resistance and excellent corrosion resistance. Compliant with DIN 2605-1 / EN 10253-4. The full list of dimensions and allowable pressures can be found in the dimensions and pressure table for seamless elbows. The 90° version is the most common elbow variant, used for sharp direction changes in compact industrial, sanitary and transfer piping.

Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
