Product code: S-KL90/060.30X02.90/1.4307

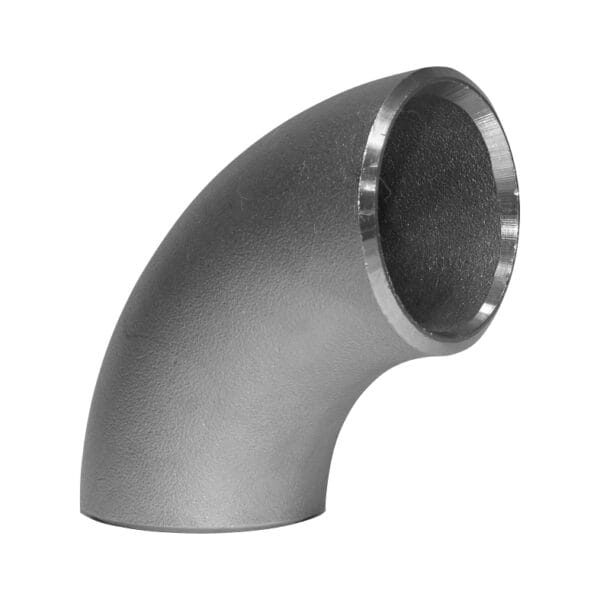

Stainless steel seamless elbow 90° 1,5D DN50 OD 60.3 mm x 2.9 mm 1.4301 / 1.4307 / 304 / 304L
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Outside diameter (OD) DN50 / 60.30 mm
- Wall thickness (WT) 2.90 mm
- Steel grade 1.4307
- Radius 1,5D (Type 3)
- Angle 90°
- 3.1 certificate available yes
Description
Stainless steel seamless elbow 90° with a 1,5D radius, outside diameter 60.3 mm × wall thickness 2.9 mm, steel grade 1.4301 / 1.4307 / 304 / 304L. Theoretical weight per piece: 0.5 kg. Stainless steel elbows are used wherever a pipeline must change direction — in hydraulics, industrial installations, heat exchangers, and chemical, food-grade and sanitary systems. The seamless construction delivers high pressure resistance and excellent corrosion resistance. Compliant with DIN 2605-1 / EN 10253-4. The 90° version is the most common elbow variant, used for sharp direction changes in compact industrial, sanitary and transfer piping.
Austenitic stainless steel with very good corrosion resistance, good weldability and a wide range of industrial applications. The material is used in machine construction, food industry, chemical industry and general structures.
