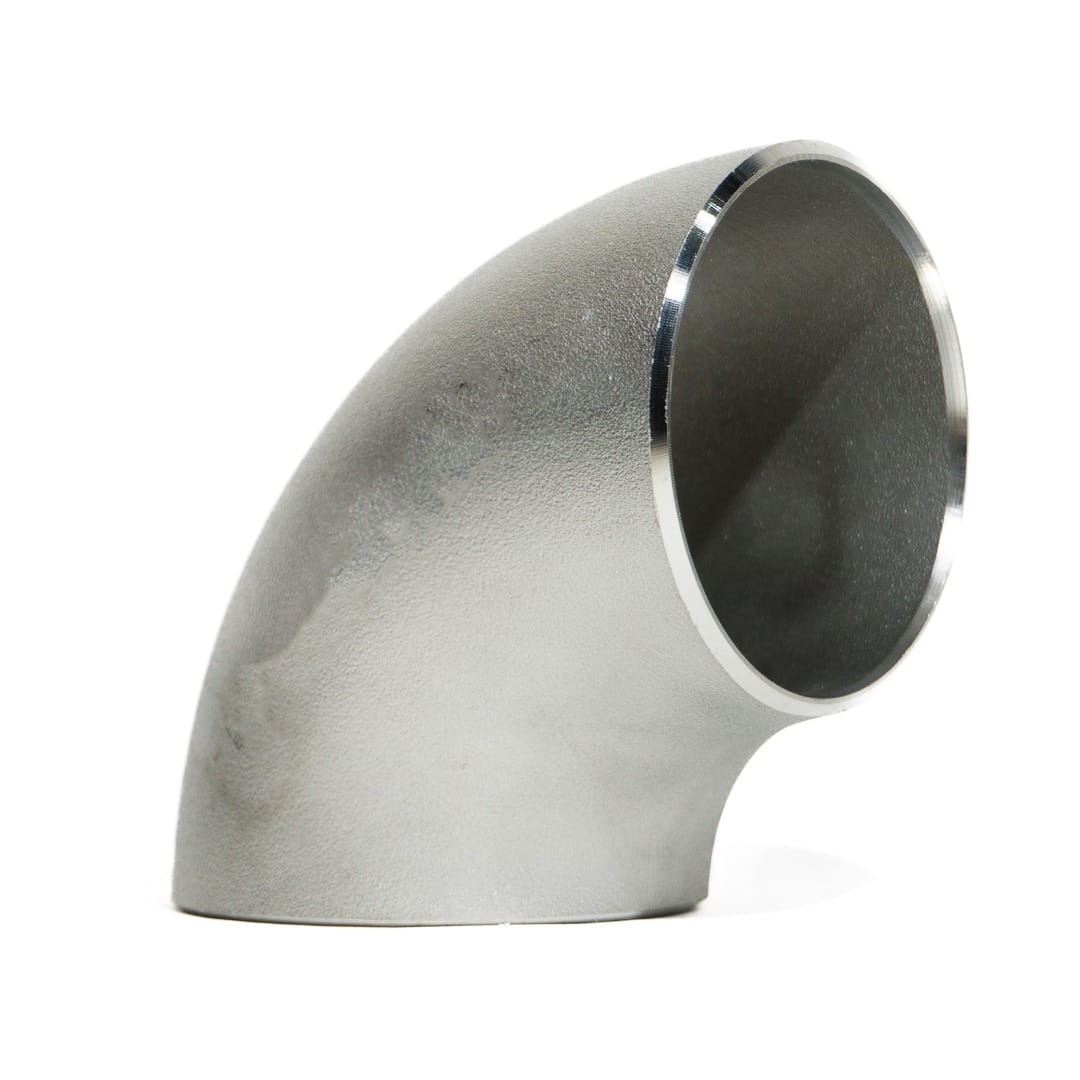

Stainless steel seamless elbow 90° 1D DN40 OD 48.3 mm x 3.2 mm 1.4571 / 316Ti

Stainless steel seamless elbow 90° with a 1D radius, outside diameter 48.3 mm × wall thickness 3.2 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 0.3 kg. Stainless steel elbows are used wherever a pipeline must change direction - in hydraulics, industrial installations, heat exchangers, and chemical, food-grade and sanitary systems. The seamless construction delivers high pressure resistance and excellent corrosion resistance. Compliant with DIN 2605-1 / EN 10253-4. The full list of dimensions and allowable pressures can be found in the dimensions and pressure table for seamless elbows. The compact 1D-radius variant fits into tight spaces and is used wherever the standard 1.5D radius does not fit the planned pipework route.

Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
