Product code: S-KL90-1D/076.10X02.90/1.4571

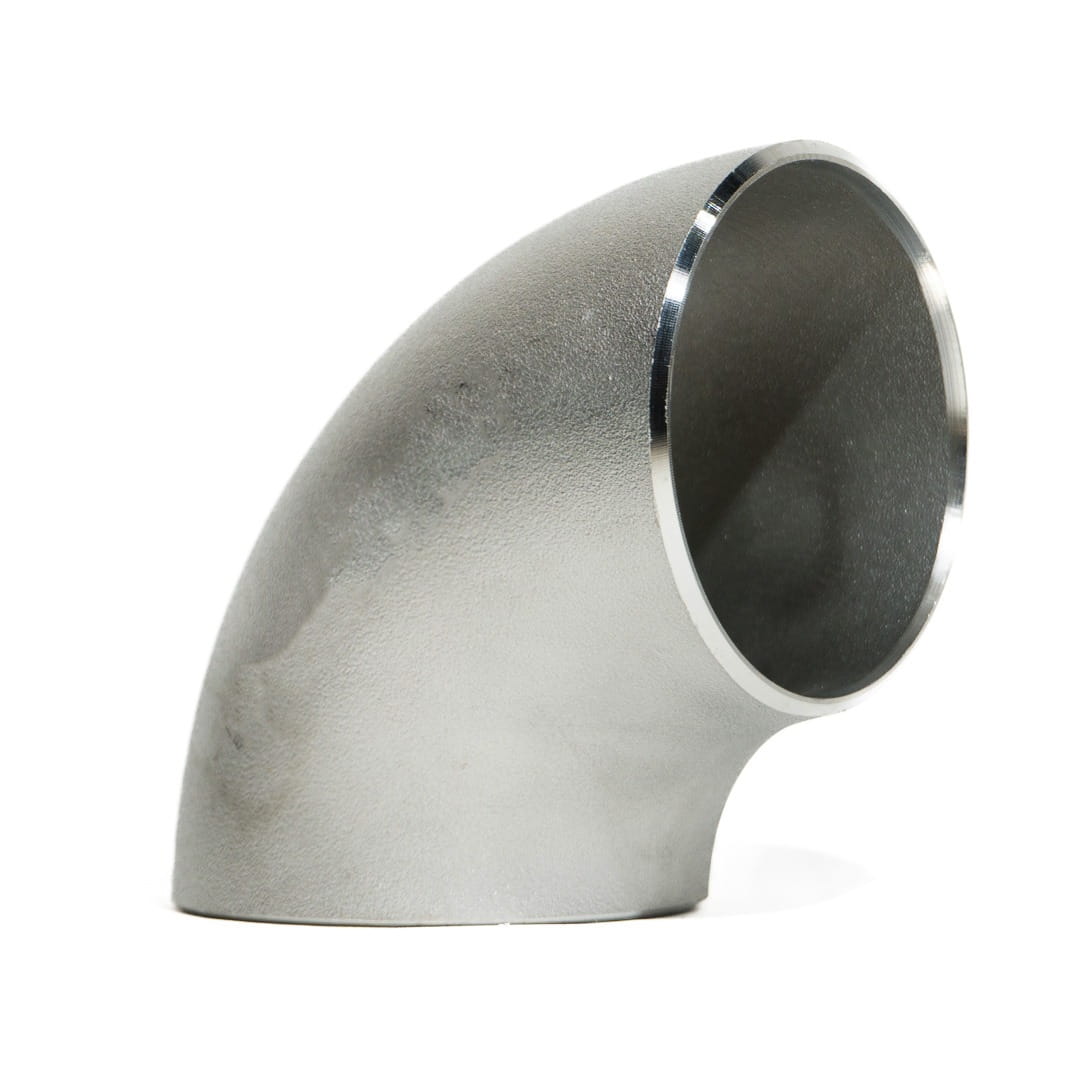

Stainless steel seamless elbow 90° 1D DN65 OD 76.1 mm x 2.9 mm 1.4571 / 316Ti
Ask about the product
Administratorem danych osobowych jest Stainless Europe Sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Complete your order:
Specifications
- Outside diameter (OD) DN65 / 76.10 mm
- Wall thickness (WT) 2.90 mm
- Steel grade 1.4571
- Radius 1D (Type 2)
- Angle 90°
- 3.1 certificate available yes
Description
Stainless steel seamless elbow 90° with a 1D radius, outside diameter 76.1 mm × wall thickness 2.9 mm, steel grade 1.4571 / 316Ti. Theoretical weight per piece: 0.8 kg. Stainless steel elbows are used wherever a pipeline must change direction — in hydraulics, industrial installations, heat exchangers, and chemical, food-grade and sanitary systems. The seamless construction delivers high pressure resistance and excellent corrosion resistance. Compliant with DIN 2605-1 / EN 10253-4. The compact 1D-radius variant fits into tight spaces and is used wherever the standard 1.5D radius does not fit the planned pipework route.
Grade 1.4571 / 316Ti is a titanium-stabilised austenitic stainless steel with very good corrosion resistance and wide industrial application. Compared to standard chromium-nickel grades, this material performs well in more demanding environments. Steel 1.4571 is used in the chemical, energy and food industries and in the production of technical apparatus and installations.
